Active Infrared Motion Sensor For Automatic Door

Name: Active Infrared Motion Sensor For Automatic Door
Brand: SONGRUI
Price: 1 USD

Brand Name : SONGRUI

Model Number : YS111

Certification : CE

Place of Origin : China

MOQ : 50 SETS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 Set/Sets per Month

Delivery Time : 5-8 WORK DAYS

Product Name : Infrared sensor

Type : YS111

power supply : AC/DC 12-36V

Detecting range : 1.5-2.5m

Working Temperature : -20 ℃ to +60 ℃, Deviate from set scan area 60℃

Detecting parts : 1 piece or 2 pieces

Contact Now

Active Infrared Motion Sensor For Automatic Door

Features:

1. It can detect the moving person or objects.
2. The quantity of detecting parts can be selected to suit different width of door wings.
3. Safe, beautiful, economic, comfortable.

Product Specification:

Active Infrared motion sensor for automatic door (YS111)
Approval	CE & ISO9001
Scan area setting	Mechanical adjustment of wheels 500-2800mm, Triangle principle
Ambient temperature	-20 ℃ to +60 ℃, Deviate from set scan area 60℃
Distinguish black/white	Max 20% White:scan area is larger Black:scan area is smaller, The distinguish between black and white according to scan area set
Detection area diameter	About 75mm light spot, Apply in 2000mm scan area
Type of ray	Type of ray, 880nm pulse modulation infrared light
Operation voltage	AC/DC 12-36V
Current consumption	<100mA
Signal output	Relay,switch point Highest alternating voltage 48V DC/AC Highest alternating current 0.5A DC/AC Highest alternating capacitance volt-ampere/24watts Electrical isolation Rated current (resistive load) DC 1A/24V Inductive load capacitive load Provide EDM quenching Resistive load
Detection response time	≤100ms
Operation mode	Motion or standstill mode, self-adaption
Function Indicator	LED, Blue-standby, Red-detect
IP	IP 52
Housing material	AL/ABS
Sensor dimension (sensor for revolving door)	750 31 20mm 900 31 20mm, 1200 31 20mm(optional) (Length/Width/Hight)
Sensor dimension (Motion light curtain sensor)	620 31 20mm, (Length/Width/Hight)
Electromagnetic compatibility	Anti-interference abide by EN61000-6-1,EN61000-6-2 Emission interference abide by EN61000-6-3,EN61000-6-4 Anti-interference abide by EN61000-6-1,EN61000-6-2 Emission interference abide by EN61000-6-3,EN61000-6-4
Detecting parts	1 piece or 2 pieces

Our service

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

Active Infrared Motion Sensor For Automatic Door

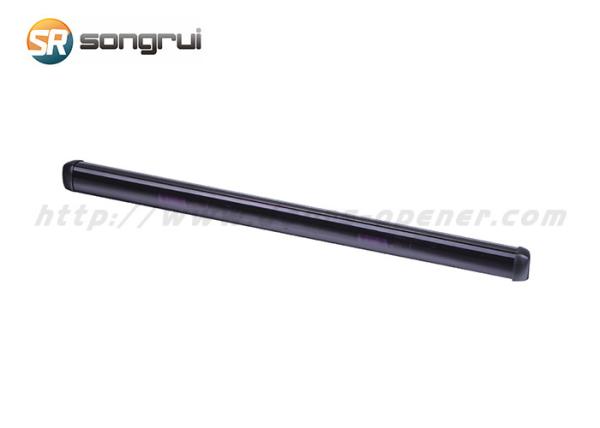

Active Infrared Motion Sensor For Automatic Door Images
